Internal Jackshaft 90 Degree

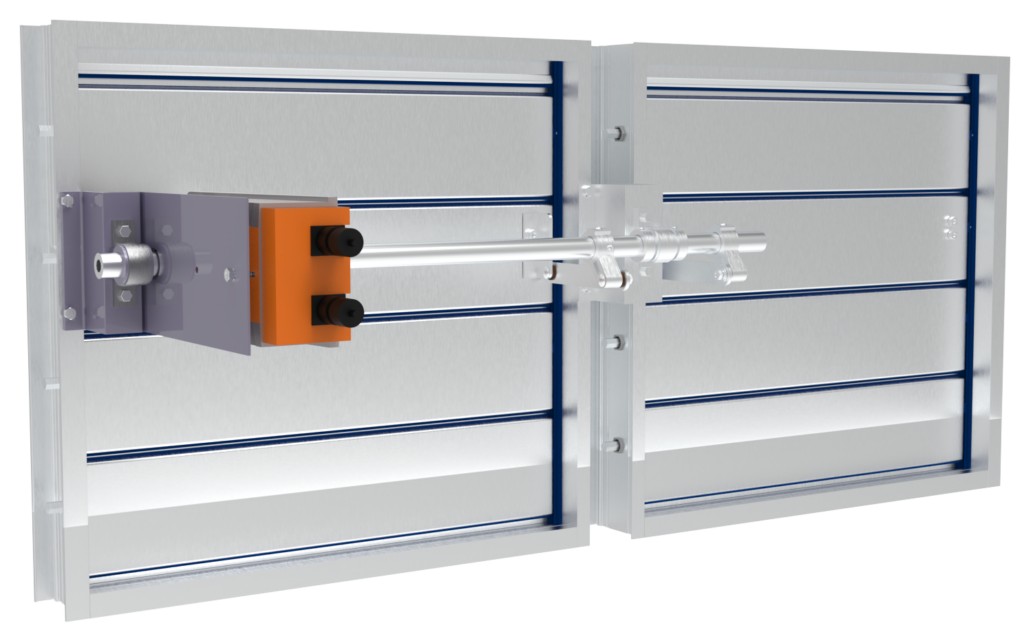

Tamco motor mounting kits for internal 90-degree jackshaft dampers are designed for complex layouts. The actuator motor is installed in the air stream perpendicular to the frame of the damper, and the kit supplies all necessary hardware to achieve accurate alignment and optimal damper performance.
- Kit Configurations
- Kit Options
- Documents
Determine the required kit number by matching damper profile, actuator model, and mount type. If superscript appears next to the kit number, refer to the footnotes under the tables for more information.
Actuator Mounting Configuration
| Profile | SP | NP1 | WP2 | Mount Type | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| EF | AF | NF | EF | AF | NF | EF | AF | NF | ||
| Internal Jackshaft | 3A | 1B | 1B | 3A | 1B | 1B | N/A | N/A | N/A | In duct |
| 3A | 1B | 1B | 3A | 1B | 1B | 3A | 1B | 1B | Flanged To | |
| 3A | 1B | 1B | 3A | 1B | 1B | N/A | N/A | N/A | Extended Rear Flange | |
Kit Notes:
1 – NP model is not available for 1500 Series.
2 – WP model is not available for 9000 BF Series.
4 – For multiple section dampers with an internal jackshaft 90°. If selection calls for 1B, use Kit #3.
A – Single section jackshafts require a special configuration, please consult the factory. No modification needed for multi-section jackshafts.
B – For single section dampers only.
Ensure the correct kit is selected by first identifying the kit number on the Kit Configuration tab. Confirm the appropriate kit number for the specific damper configuration before reviewing available kit options.
Kit Part Numbers
| Kit # | Standard | Moisture Resistant (MR) | Saltwater Resistance |
|---|---|---|---|
| 1 | AL-5001 | AL-5031 | AL-5041 | 3 | AL-5003 | AL-5033 | AL-5043 |
