External Jackshaft Multi-Section

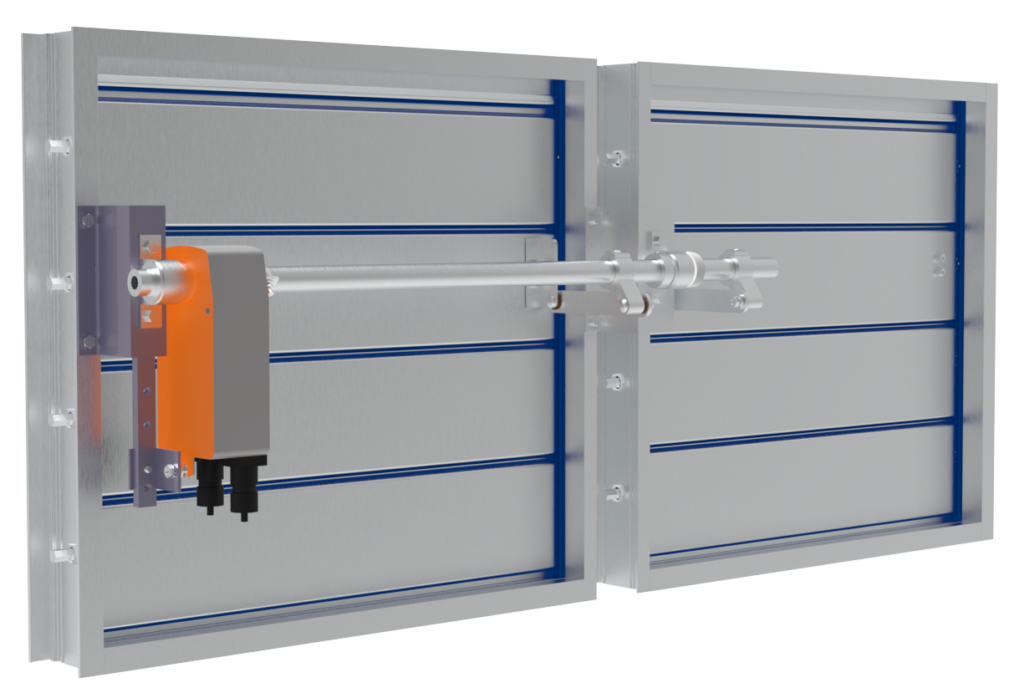

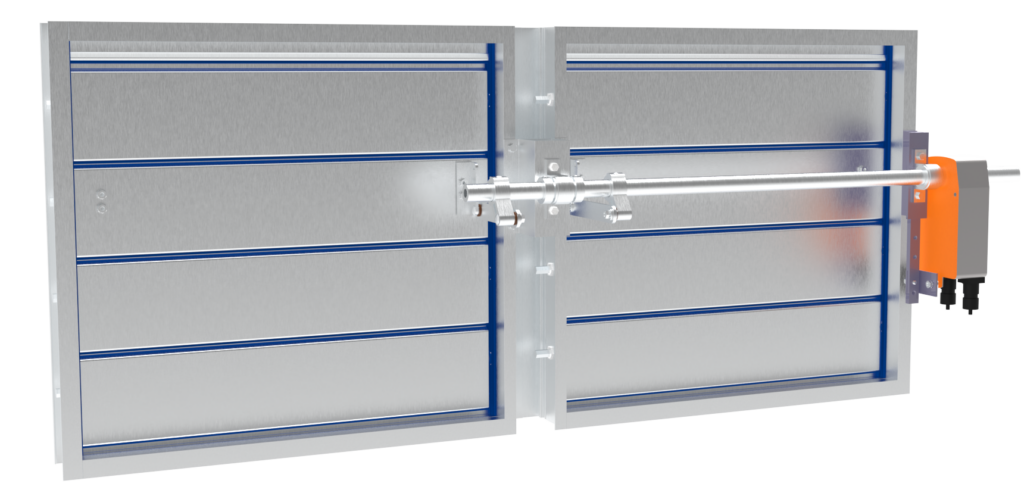

Tamco’s multi-section jackshaft motor mounting kits provide everything required to mount motors across multiple damper sections seamlessly. Jackshaft Multi-Section Motor Mounting Kit configurations include internal and external parallel mounting configurations. In these kits, the actuator motor is installed in the air stream parallel to the damper frame, and the kit simplifies installation, saves time, and maintains the reliable performance you expect from Tamco dampers.

Kit Configurations
Kit Options
Documents

Determine the required kit number by matching damper profile, actuator model, and mount type. If superscript appears next to the kit number, refer to the footnotes under the tables for more information.

Actuator Mounting Configuration

Profile	SP			NP¹			WP²			Mount Type
Profile	EF	AF	NF	EF	AF	NF	EF	AF	NF	Mount Type
External Jackshaft	2^A	2^A	2^A	2^A	2^A	2^A	2^A	2^A	2^A	Flanged To
	2^A	2^A	2^A	2^A	2^A	2^A	N/A	N/A	N/A	Extended Rear Flange

Kit Notes:

¹ – NP model is not available for 1500 Series.
² – WP model is not available for 9000 BF Series.
^A – Single section jackshafts require a special configuration, please consult the factory. No modification needed for multi-section jackshafts.

Ensure the correct kit is selected by first identifying the kit number on the Kit Configuration tab. Confirm the appropriate kit number for the specific damper configuration before reviewing available kit options.

Kit Part Numbers

Kit #	Standard	Moisture Resistant (MR)	Saltwater Resistance
2	AL-5002	AL-5032	←
