External Direct Mount 90 Degree

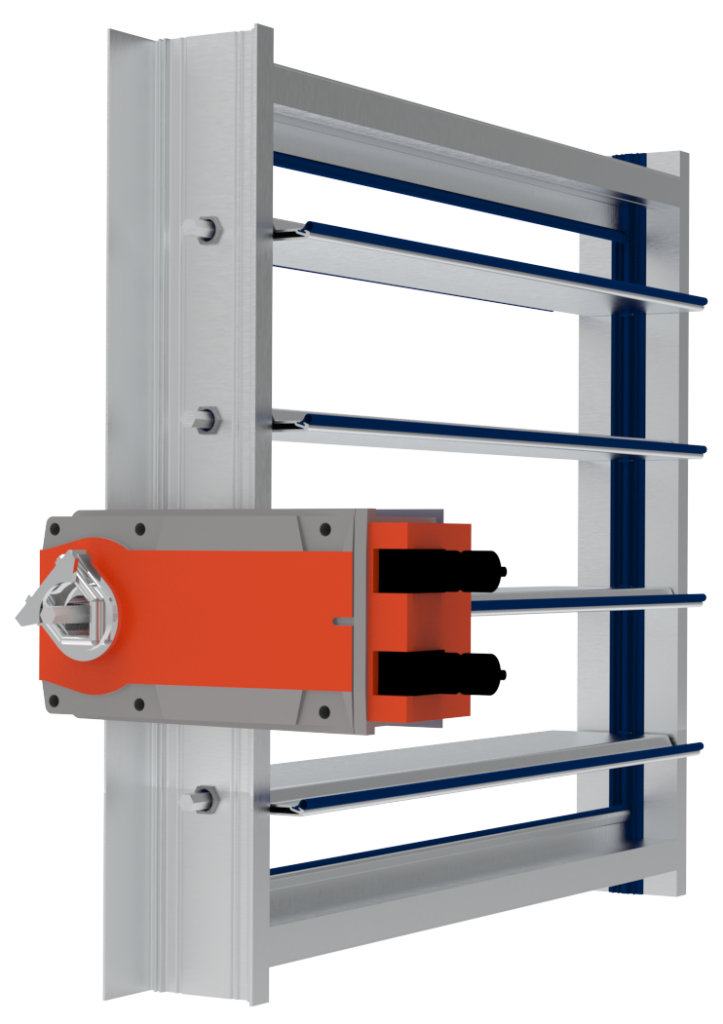

Tamco’s 90-degree external direct mount motor kits provide a complete solution for angled damper setups. The actuator motor is installed directly to the drive rod outside the air stream and perpendicular to the damper frame, and the kit includes all hardware to eliminate guesswork, simplify field work, and maintain optimal damper operation.
- Kit Configurations
- Kit Options
- Documents
Determine the required kit number by matching damper profile, actuator model, and mount type. If superscript appears next to the kit number, refer to the footnotes under the tables for more information.
90° Actuator Mounting Configurations
| Profile | SP | NP1 | WP2 | Mount Type | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EF | AF | NF | LF | TF | EF | AF | NF | LF | TF | EF | AF | NF | LF | TF | ||
| External Direct Mount 90° | 7 | N/A | N/A | N/A | N/A | 7 | N/A | N/A | N/A | N/A | 7 | 7 | 7 | 7 | N/A | Flanged To |
| 7 | 6 | 6 | 6 | 12 | 7 | 6 | 6 | 6 | 12 | N/A | N/A | N/A | N/A | N/A | Extended Rear Flange | |
Kit Notes:
1 – NP model is not available for 1500 Series.
2 – WP model is not available for 9000 BF Series.
Ensure the correct kit is selected by first identifying the kit number on the Kit Configuration tab. Confirm the appropriate kit number for the specific damper configuration before reviewing available kit options.
Kit Part Numbers
| Kit # | Standard | Moisture Resistant (MR) | Saltwater Resistance (SW) |
|---|---|---|---|
| 6 | AL-5006 | ↔ | AL-5046 |
| 7 | AL-5007 | AL-5037 | AL-5047 |
| 12 | AL-5106 | AL-5136 | AL-5146 |
